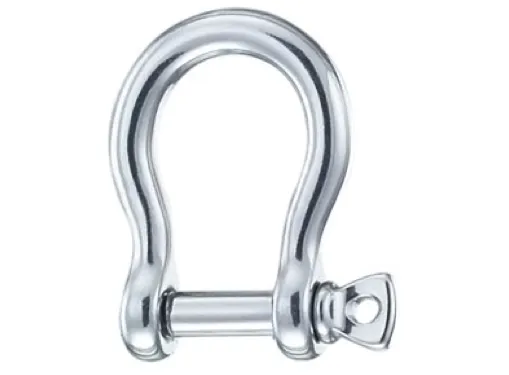

Titanium Shackles (Ti)

These shackles, which are forged from TA6V titanium alloy, and are designed for high-level racing.

Compared to equivalent High Resistance models, they offer a weight saving of approximately 40%

Key Features

• Self-locking shackle forged in Titanium TA6V
• Important weight savings (up to 40%)
• The pin is locked into one of the indentations
• No risks of loose due to vibrations
• Outstanding working and breaking loads
• Designed for applications on racing boats
• To be used when ample room is required
• Possibility to attach several lines or cables
• Standard applications of shackle
• Attachment applications: blocks, head …
• TA6V titanium

Dimensions & Break Loads

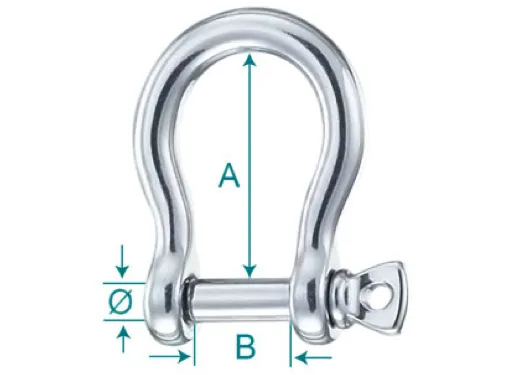

• Dimemsion: 6mm A = 47mm, 8mm A = 55mm, 6mm B = 20mm, 8mm B = 24mm
• Work Load Kg: 6mm = 2160, 8mm = 2800
• Break Load Kg: 6mm = 6000, 8mm = 8000
• Weight: 6mm 0.082 gram, 8mm 0.136gram

Sizes

• Titanium Bow Shackle 10mm
• Titanium Bow Shackle 12mm
